About This

• 【2025 New Upgrade】 New Process Design, Super Stability. High Power Industrial Mini 2.4GHz WiFi Bridge/Router/Repeater/Wireless Access Point/WiFi to Ethernet RJ45, can achieve WiFi to Wired or Wired to WiFi function (Suitable for industrial applications).

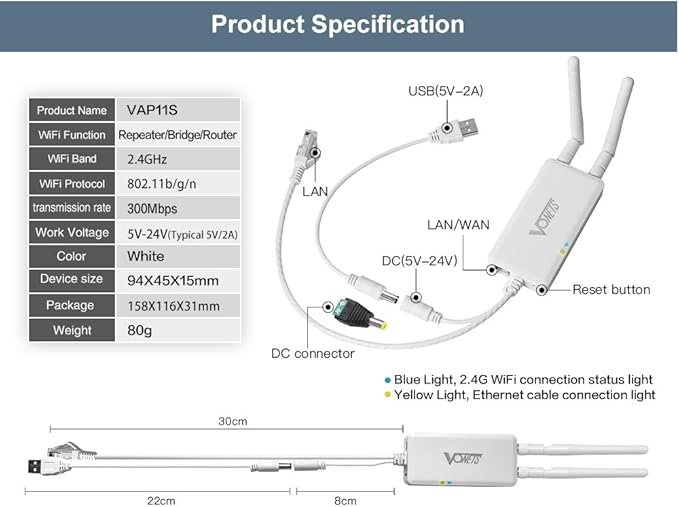

• 【Configuration & Parameters】WiFi rate: 300Mbps, WiFi Tx Power: 19dBm/23dBm optional, 2 external antennas Point-to-point transmission distance: maximum can be up to 150-200 meters when without obstacle and small data transmission, less than 100 meters when used for video transmission.
• 【Power & Accessories】Powered by wide voltage DC5V-24V(Typical 5V/2A, ripple less than 100mV), two-stage automatic overvoltage protection (Protection voltage upper limit 27V), USB or DC optional powered mode; 1 Fixing Kit and 1 Industrial DC connector, more suitable for industrial applications.

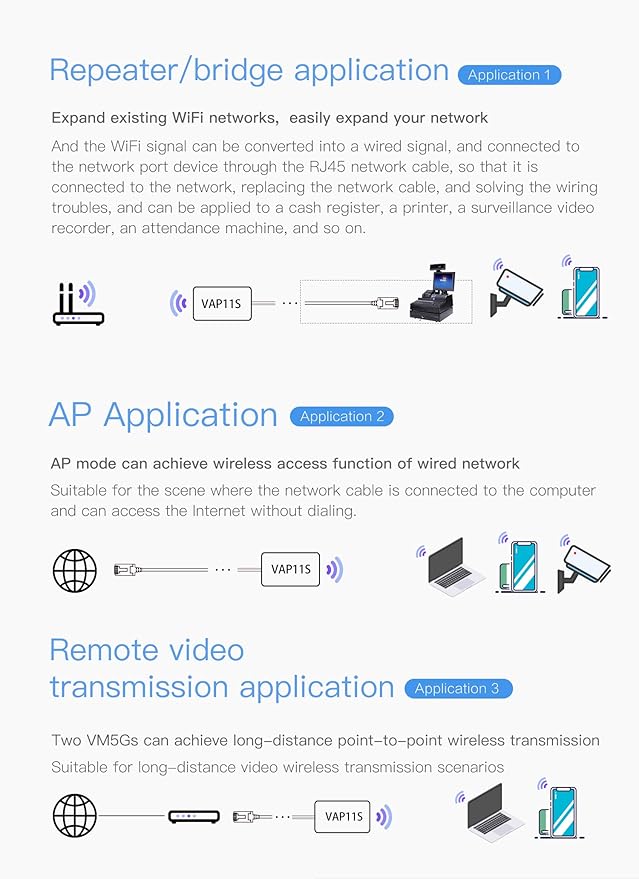

• 【Specifications & Application】The card size occupies a small space, is easy to carry, and has industrial integration. Good Partner for security system, DVR, IP camera, Medical devices, IoT devices, Video transmission, Industrial PLC, PS3, Network Printer, Robot, Doll Machine, and most WiFi network applications.
• 【Continuous Update Service】The software of our equipment is constantly optimized. You can upgrade the software version of the equipment online at any time to achieve the best function of the equipment.

Overview

• Brand : Vonets
• Wireless Communication Standard : 802.11bgn
• Data Transfer Rate : 300 Megabytes Per Second
• Frequency Band Class : Single-Band
• Special Feature : Temperature Compensated Auto Frequency Control, Multiple Power Supply Options, High Device Connection Capacity, Advanced Configuration Technologies, Dual Bridge Modes Temperature Compensated Auto Frequency Control, Multiple Power Supply Options, High Device Connection Capacity, Advanced Configuration Technologies, Dual Bridge Modes
