About This

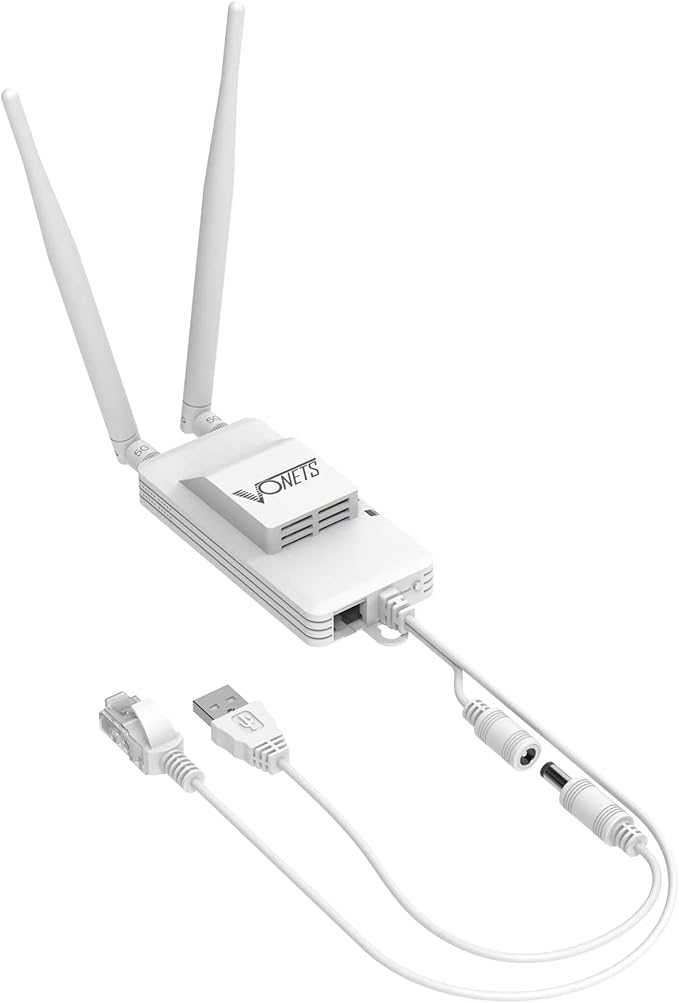

• 【2025 New Upgrade】 New Process Design, Super Stability. Industrial Mini 5GHz WiFi Bridge/Wireless Bridge/Router; Support WiFi 802.11a/n/ac protocol, 900Mbps WiFi rate; Can realize WiFi to wired or wired to WiFi function

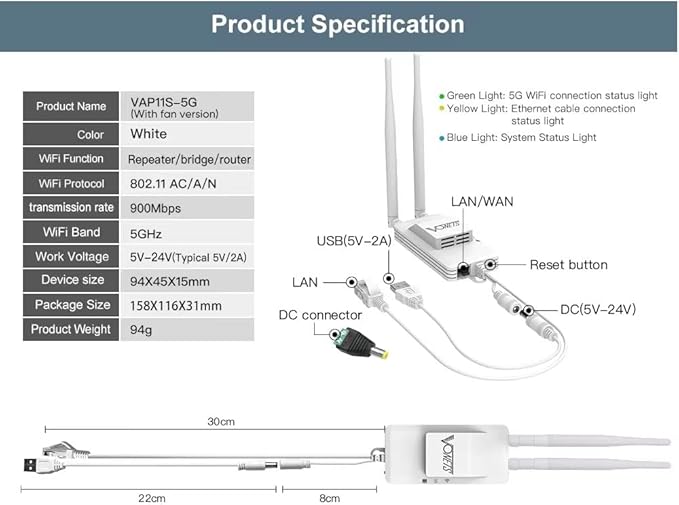

• 【Technical Parameters】WiFi Tx power: 19dBm/23dBm optional, 2 x 3dBi external antenna; point-to-point transmission distance: up to 200 meters without obstacles and small data transmission (802.11a protocol), when used for video transmission Up to 20m to 100m

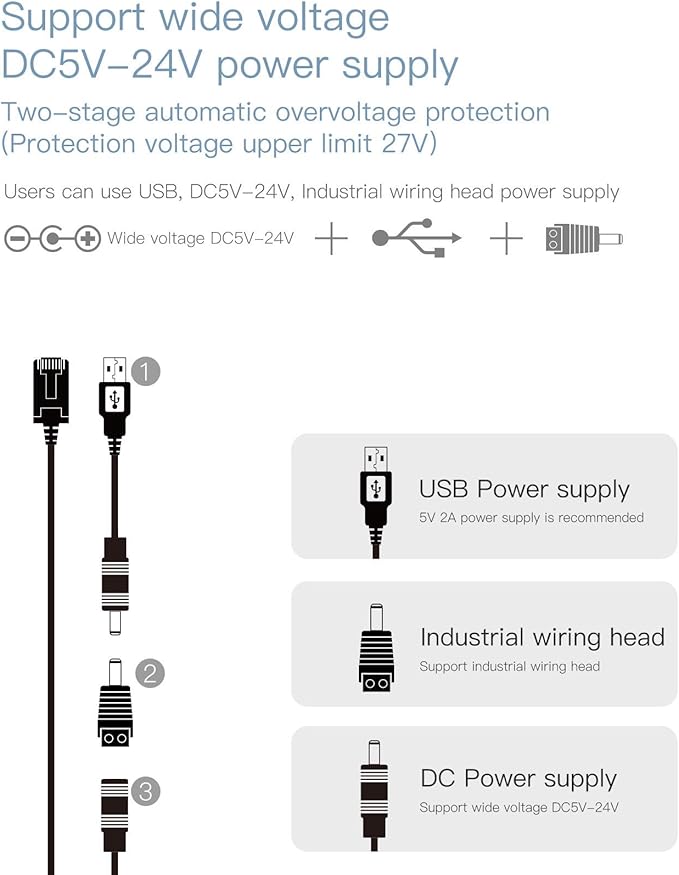

• 【Power Supply Mode】Wide voltage DC5-24V power supply (typical 5V/2A, ripple less than 100mV), two-level automatic overvoltage protection (protection voltage upper limit 27V), USB or DC female port optional power supply mode; including 1 fixed Kit and 1 industrial DC connector, more suitable for industrial applications

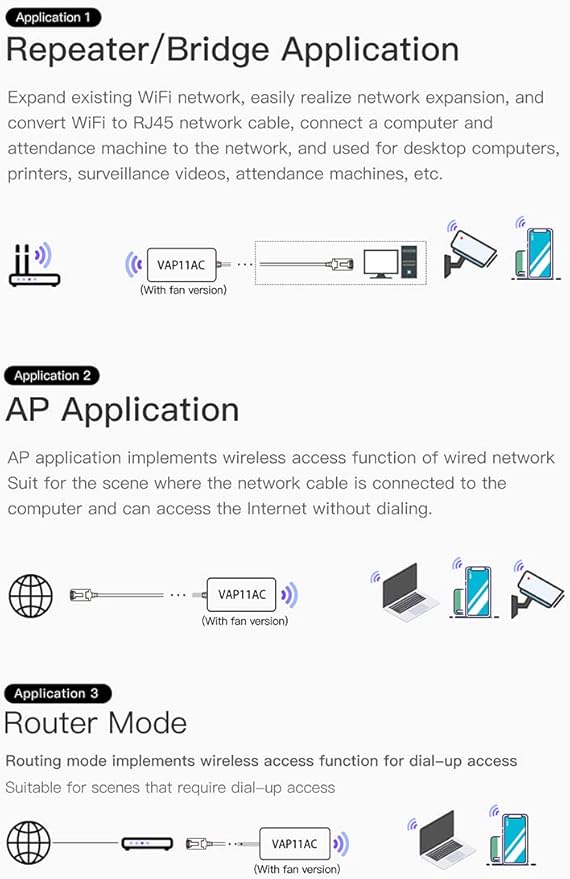

• 【Industrial And Other Applications】It is good for WiFi network applications such as WiFi sports applications, surveillance, DVR, IP cameras, medical equipment, IoT devices, video transmission, industrial PLC, PS3, network printers, robots, AGV, doll machines etc
• 【Continuous Update Service】The software of our device is continuously optimized. You can upgrade the software version of the device online at any time to achieve the best function of the device

Overview

• Brand : Vonets
• Wireless Communication Standard : 802.11a, 802.11ac, 802.11n
• Data Transfer Rate : 900 Megabytes Per Second
• Special Feature : LED Indicator
• Color : VAP11S-5G
