About This

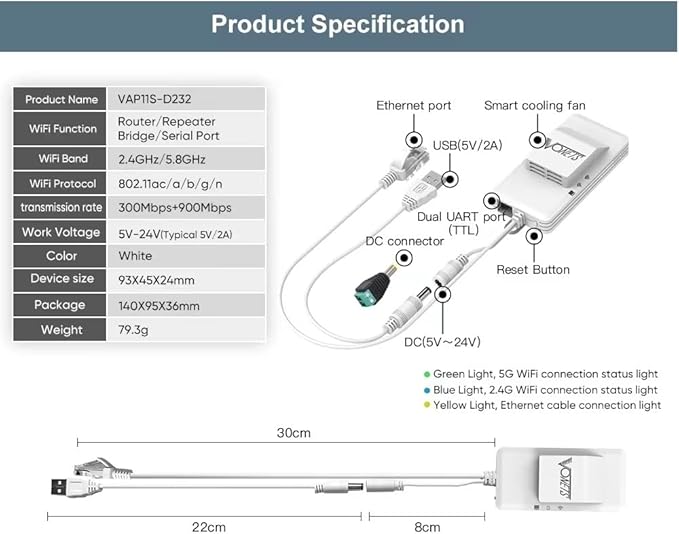

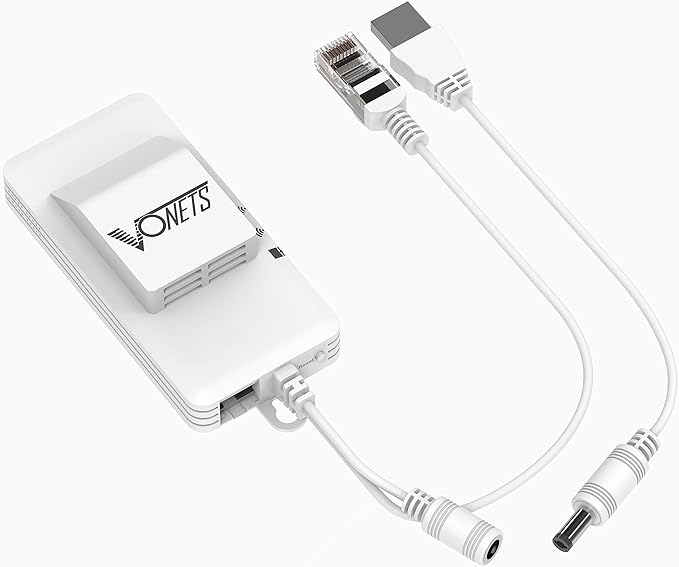

• 【2025 New Upgrade】 New Process Design, Super Stability, A new independent cooling fan is added to adapt to various complex environments.Unlike VAP11S, it turns the network port of VAP11S into RS232 serial port, which can be used for RS232 devices through accessories and is dual-band (2.4G + 5G)
• 【Standard WiFi Parameters】Dual-band wireless bridge with fast WiFi transmission rate: 300Mbps (2.4GHz) + 900Mbps (5GHz), supports WiFi 802.11A/B/G/N/AC protocols, 2.4G has strong anti-interference capability, 5G can greatly improve the transmission rate and distance, in the absence of obstacles and small data The transmission distance is greater than 100m, less than 100m when used for video transmission

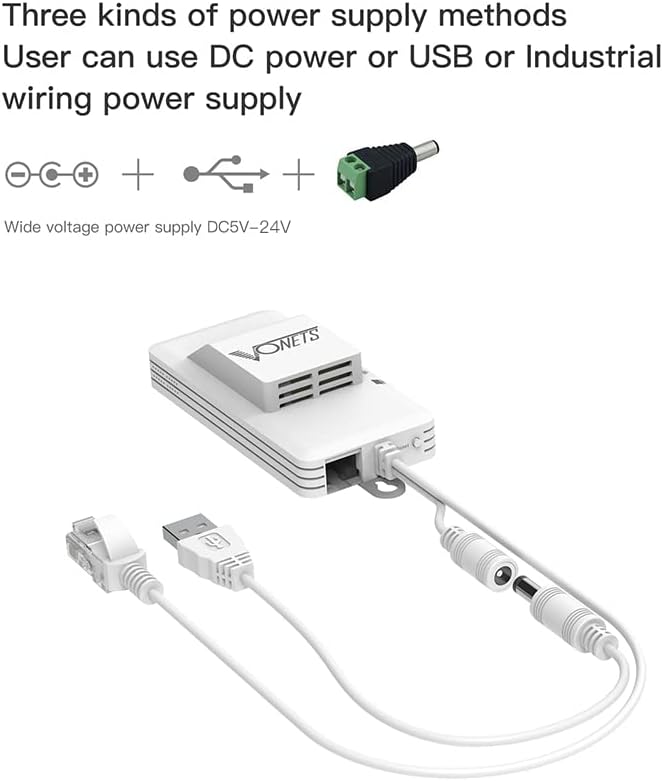

• 【Multiple Power Supply Options Available】A USB/DC power cable, wide voltage DC5V-24V power supply, USB typical 12V/1A power supply (ripple preferably less than 100mV), two-stage automatic overvoltage protection (protection voltage upper limit 15.5V), a 10/100Mbps adaptive Ethernet cable (30cm), can be plugged into the network port of wired devices

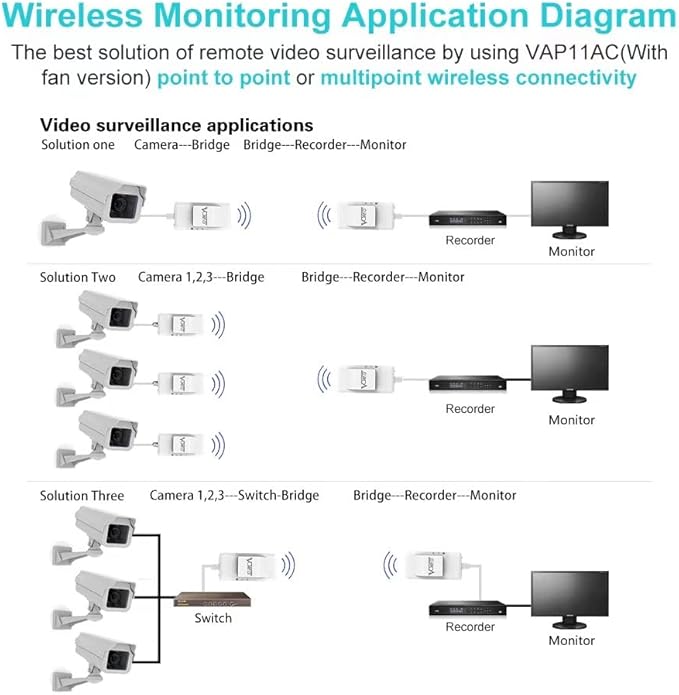

• 【Suitable For A Variety of Environments & Network Devices】1. WiFi Signal Repeater: can extend WiFi transmission distance；2. WiFi AP Hotspot：suitable for use in hotel rooms；3. WiFi Bridge,：suitable for use in wired to wireless, such as monitoring, electronic scales, DVR, IP cameras, medicine, Internet of Things and other wiring difficulties and the need for Internet access places
• 【Warm Tips】This device is a mini high-power dual-band WiFi Bridge, small size, high power will lead to VAP11AC heat, please rest assured to use, please check the manual or configuration video in detail before use, so that a one-time configuration success, if you have any questions, contact htxeu2021@163.com to seek solutions

Overview

• Brand : Vonets
• Wireless Communication Standard : 2.4 GHz Radio Frequency, 5 GHz Radio Frequency
• Data Transfer Rate : 1200 Megabits Per Second
• Frequency Band Class : Dual-Band
• Special Feature : WPS
