About This

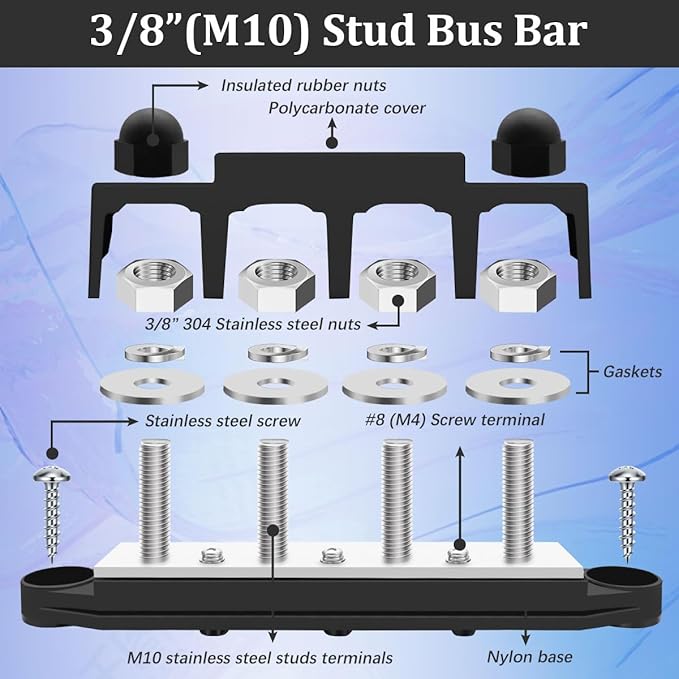

• Material: The bus bar is composed of brass bottom plate and 304 stainless steel screw terminals, which is not easy to rust; The protective sleeve and base are made of nylon, which is flame retardant, can prevent electrical short circuit and is safer

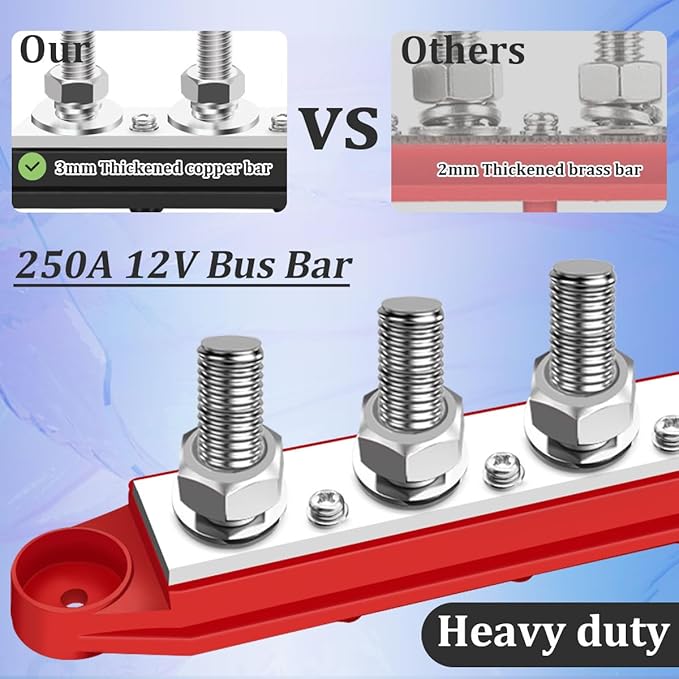

• Product features: 3mm copper busbar is thicker than other 2.0mm brass busbars and can withstand 250A actual current; The bus bar is very firm and will not fall off, and the exposed areas on both sides allow 180 installation
• Parameter: Maximum voltage: 300V AC, 48V DC, and maximum current: 250A
• Scope of application: Using battery bus bars for wire management and wiring can make circuit wiring neat and prevent electrical short circuit; Widely used in automobiles, automobiles, trucks, ships, boats, yachts, etc

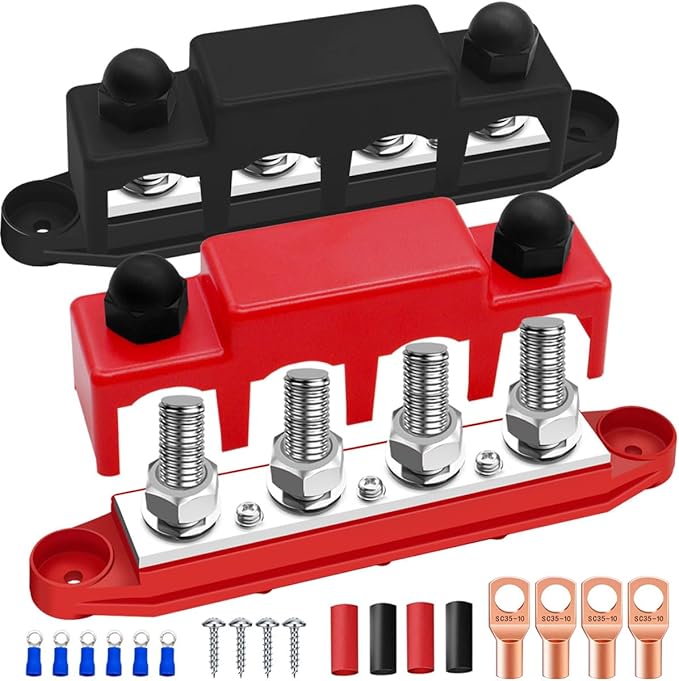

• Packaging: One red terminal: 4 x 3/8 inch (M10) with screws: 3 x #8 battery bus bar, one black terminal: 4 x 3/8 inch (M10) with screws: 3 x #8 battery bus bar
