• Tips: Before you buy, please be sure these things: (1) Neutral wire required; (2) only 2.4GHz Wi-Fi when connection

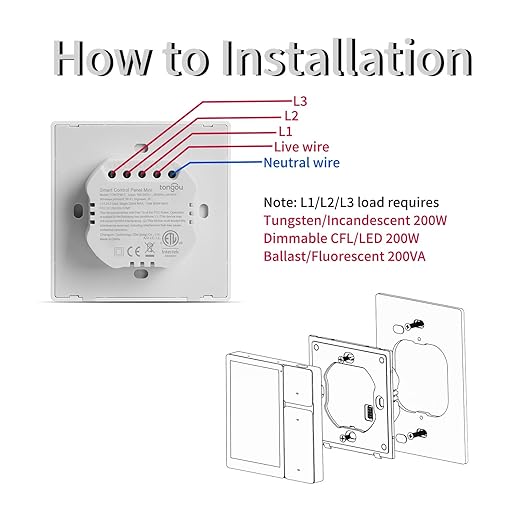

• Technical Datas: Input: AC 100-240V～, 50/60Hz, 6A Max; L1/L2/L3 load:Tungsten/Incandescent 200W, Dimmable CFL/LED 200W, Ballast/Fluorescent 200VA
• All-in-One Home Control Center: Tap the Wi-Fi smart control panel mini screen to control all devices and scenes within the same home on the Tuya/Smart Life app. While checking time, date, weather, temperature and device status effortlessly
• Wide Compatibility: The Wifi smart control panel mini supports various smart home devices like switches, bulbs, cameras, visual door locks, alarms, sensors and so on. To help you create a truly intelligent and interconnected home environment

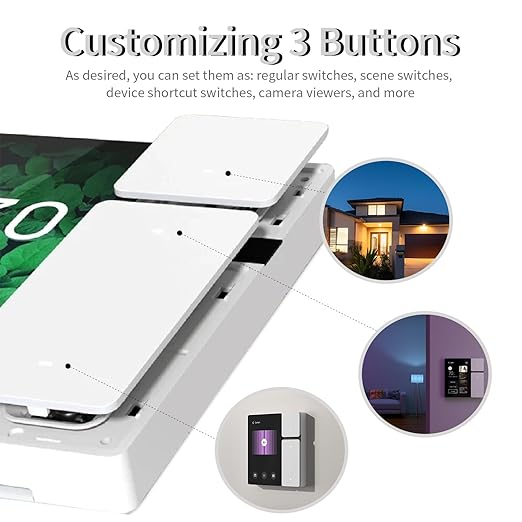

• Multiple Ways to Control: (1) Manual control: This control panel mini with 3 physical buttons, replacing up to 3 old light switches. (2) DIY remote control: It can offer various customization options via the "Smart Life" or "Tuya" APP, like relay switch, scene switch, shortcut switch, camera viewer, screen on/off and adjust the brightness. (3) Voice Control: It is compatible with Amazon Alexa and Google Assistant. You can control all smart devices via voice command. (4) IR Remote Control
• Partition Control: You can choose the control area for this panel, such as a single room, multiple rooms, or all rooms. Once selected, only devices in the chosen area will appear on the panel, while others remain hidden.
• Sigmesh Function: In addition to wifi pairing, the smart control panel mini also supports on-screen pairing for Sigmesh sub-devices. Which makes the pairing method more diversified

Overview

• Operation Mode : ON-OFF
• Current Rating : 6 Amps
• Operating Voltage : 120 Volts (AC)
• Contact Type : Normally Open
• Connector Type : Screw
• Brand : TONGOU
• Terminal : Screw

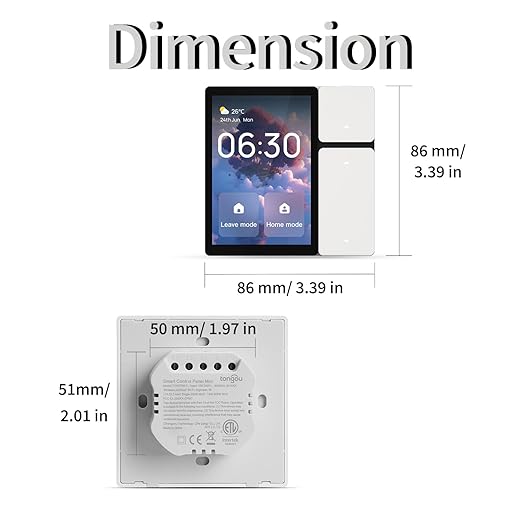

• Item dimensions L x W x H : 3.39 x 3.39 x 0.45 inches
• Circuit Type : 3-way
• Contact Material : Metal
• Switch Type Smart Control Panel : Material Panel: PC+ABS Accessory: PMMA
• : Switch Type Smart Control Panel
• : Material Panel: PC+ABS Accessory: PMMA
• Mounting Type Wall Mount : Specification Met FCC
• : Mounting Type Wall Mount
• : Specification Met FCC
