About This

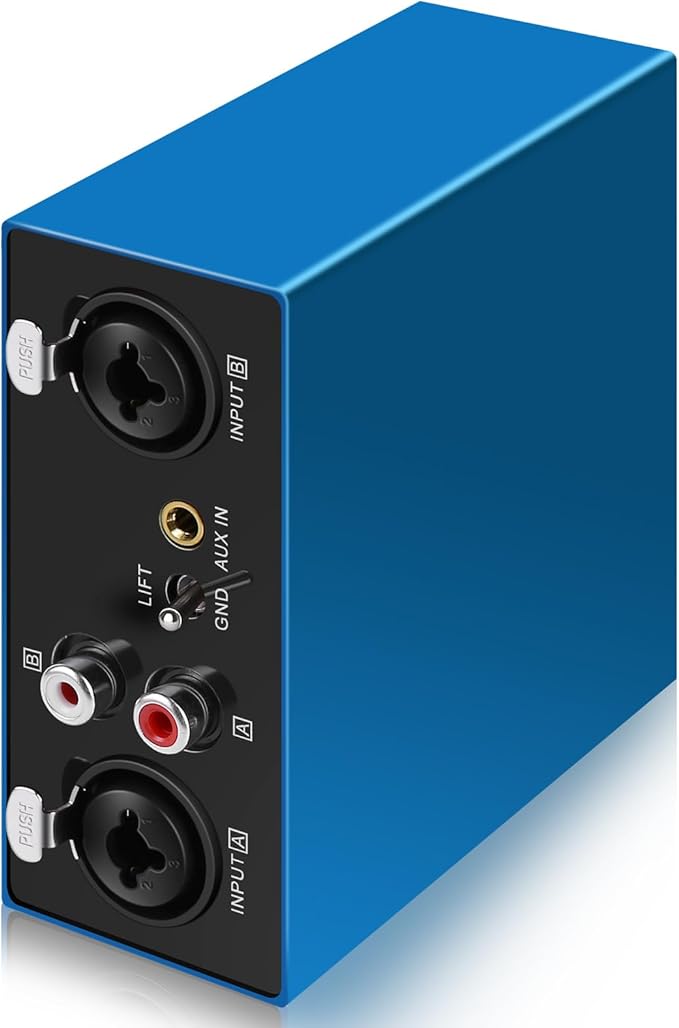

• Introduction: This product adopts full metal hidden process shell, better shielding of external electromagnetic interference, also equipped with a variety of conventional input and output audio interface (Canon/XLR port, 6.35 port, 3.5 audio port, TRS, RCA, Lotus port), so that you can use the product more conveniently in different environments.

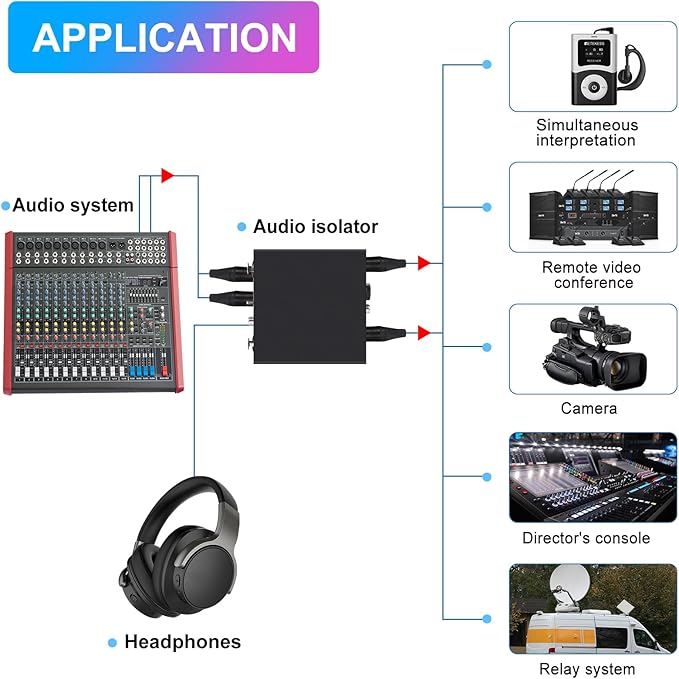

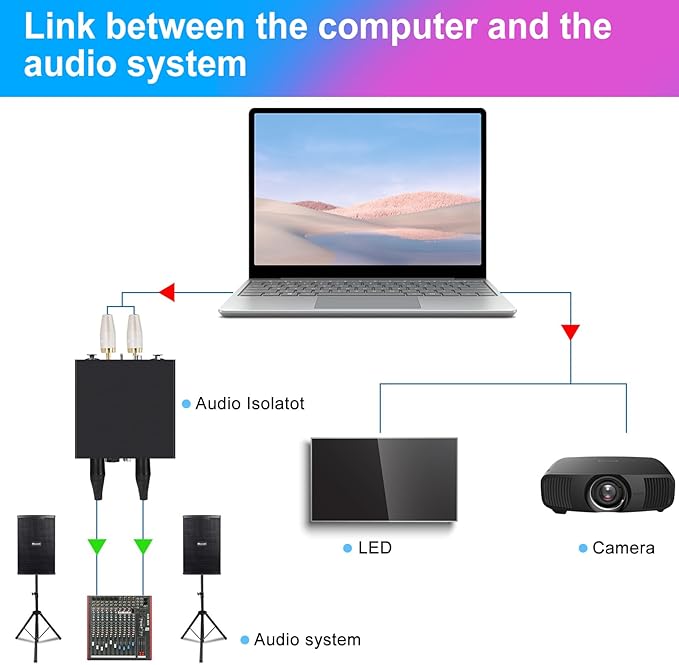

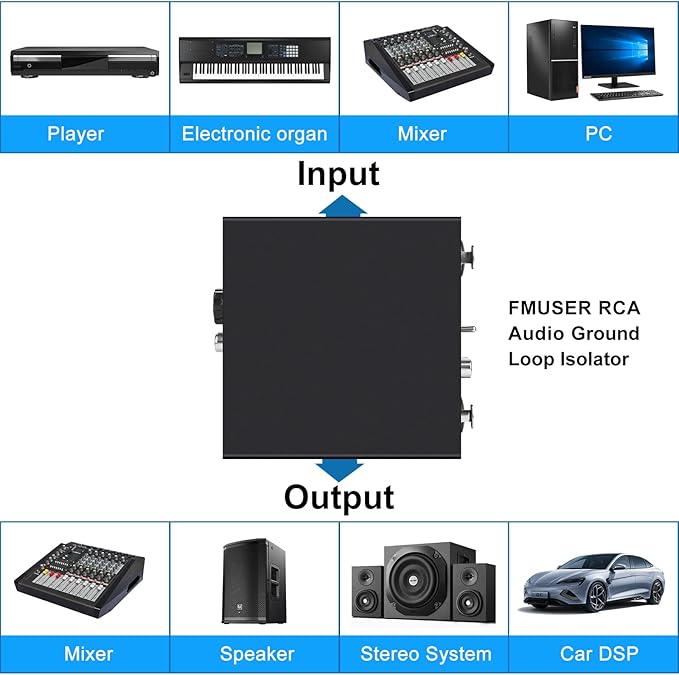

• Introduction: As the product has no loss of signal, and does not require power supply,so it has a very wide range of application scenarios, such as computers, car audio, video cameras, electronic musical instruments, home stereo and other audio equipment. The use of the environment is more diversified, large-scale outdoor performances, lightning protection of audio engineering, multimedia conferencing, home HIFI stereo, entertainment venues, exhibition halls, etc.

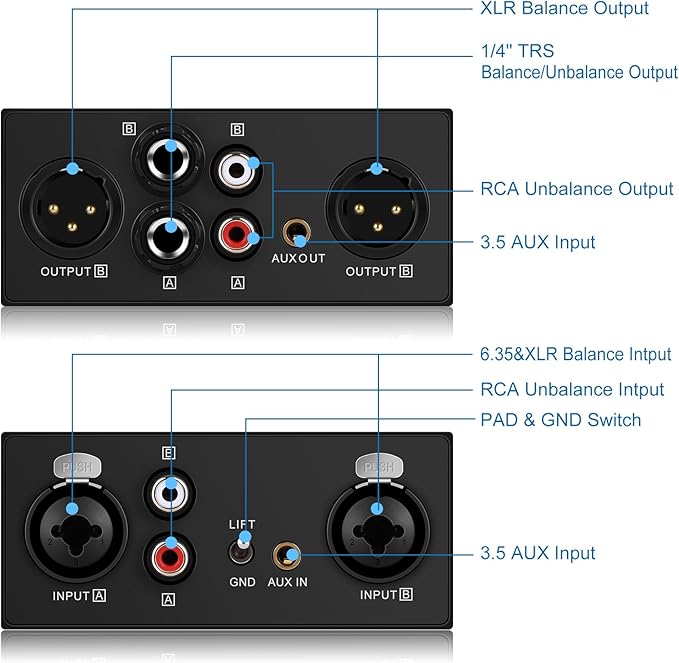

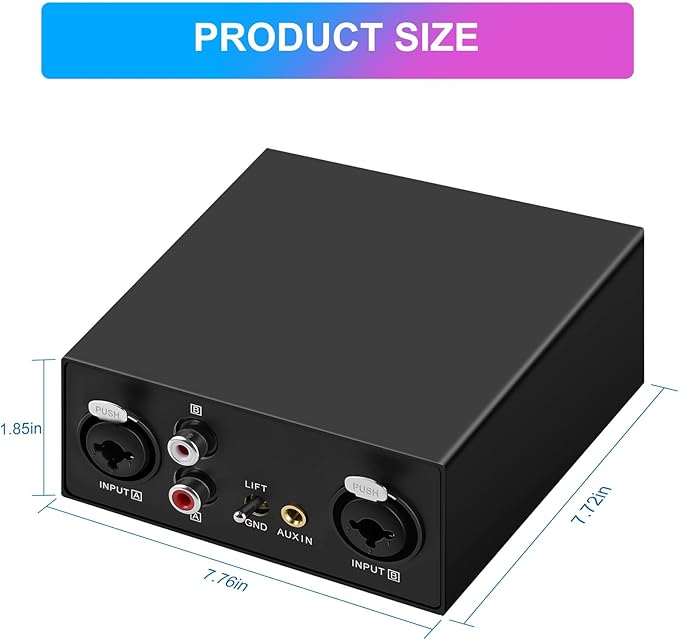

• Parameters:Specification size: 7.76*7.72*1.85in; Main functions: physical isolation, conversion between balanced and unbalanced signals; Application: Mode switching with ground switch; Frequency Response: 20Hz-20KHz; Harmonic distortion: ≦0.002% @ 1KHz; Signal loss: <0.7dB (ref 1kHz 1V rms); Input impedance: 600 ohms/10 kilohms (AC impedance); Output impedance: 600 ohms/10 kilohms (AC impedance); Isolation voltage: AC50Hz-60Hz 0V-1500V; Insulation resistance: DC1000V 100 ohm; Input Connector: XLR*2;1/4″TRS*2;RCA*2;AUXX3.5mm*1; Output Connector: XLR*2;1/4″TRS*2;RCA*2;AUXX3.5mm*1
• Main Functions and Features: 1) Complete physical-electrical isolation between the inputs and outputs of the two channel signals. 2) Flexible switching between inputs and outputs, between various interfaces, and between balanced and unbalanced. 3) Isolates the current sound and noise generated by the system when it is not connected to a common ground. 4) Ensure the safe transmission of signals, because it is isolated, so it can protect the equipment from being damaged by the difference in voltage to ground (such as fire, static electricity, etc.)."

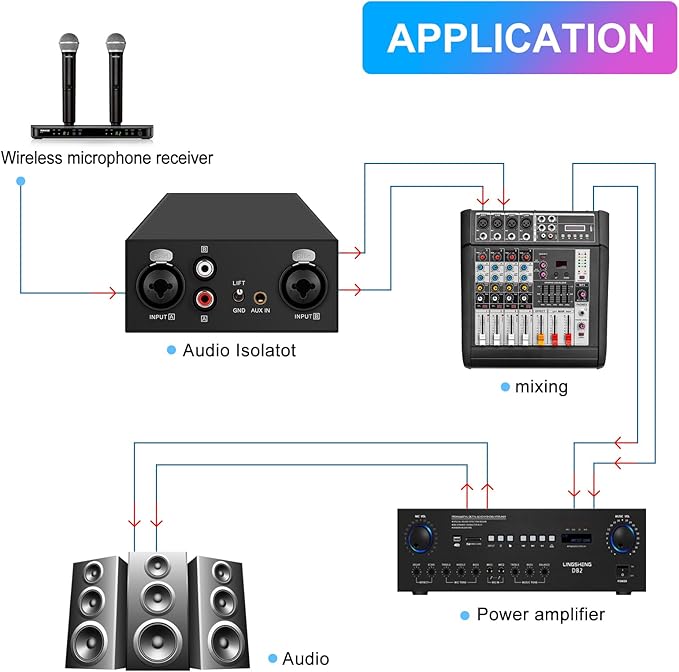

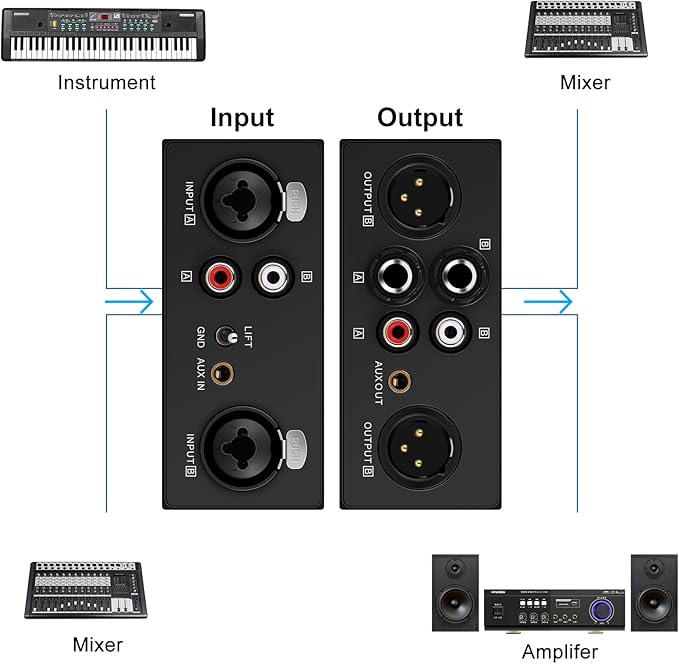

• Use of the TM100 Isolator: This product does not require power supply, just check the corresponding signal line. The input and output do not need to distinguish Left channel and Right channel. You only need to pay attention to the A-terminal input corresponding to the A-terminal output, and the B-terminal input corresponding to the B-terminal output. It is easy and simple to use, safe and reliable. It's must-have item for all kinds of audio occasions and audio lovers.

Overview

• Brand : YAREMYEYE
• Compatible Devices : Guitar, Headphone, Laptop, Microphone, Speaker
• Connectivity Technology : AUX
• Number of Channels : 2
• Item Weight : 9.6 ounces
