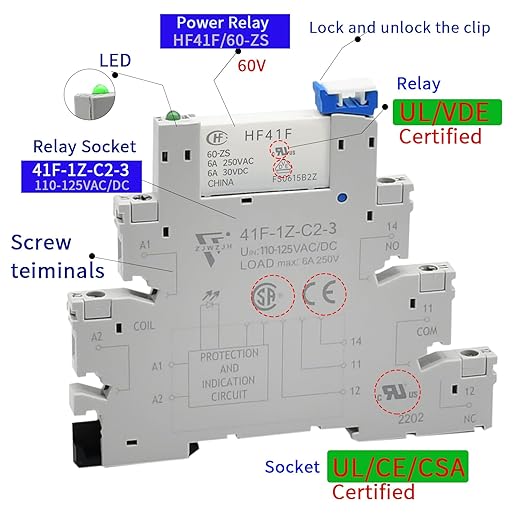

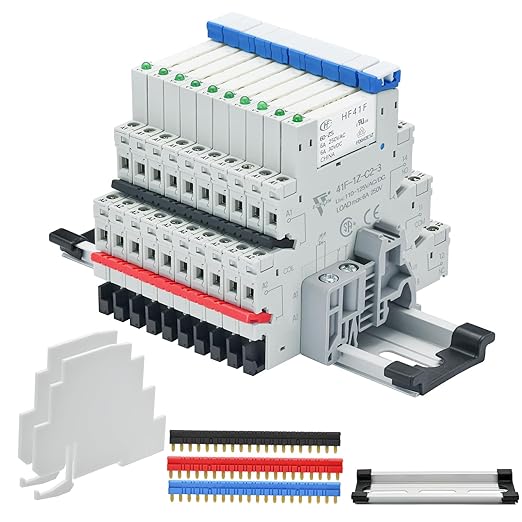

10Pcs Electromechanical Relay Miniature Power Relay 110V/ 120V AC/DC HF41F/60-ZS 1NO 1NC 6A SPDT with LED Indicator, Socket Base, DIN Rail Slotted UL Certification

10Pcs Electromechanical Relay Miniature Power Relay 110V/ 120V AC/DC HF41F/60-ZS 1NO 1NC 6A SPDT with LED Indicator, Socket Base, DIN Rail Slotted UL Certification

Regular price $124.70 USD
Regular price $124.70 USD Sale price

About This

  • 【Certifications】 Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power Relay,The thickness is only 0.24 "/6.2mm.

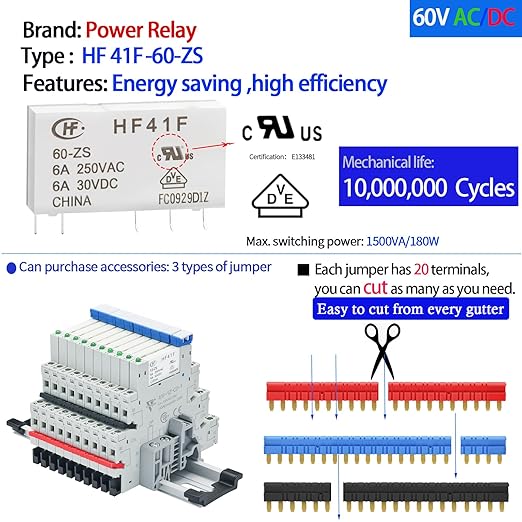

  • Contact : 1 Form C(1NO 1NC); Number of Terminals : 5 Pin; Coil Voltage:AC/DC 24V; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.

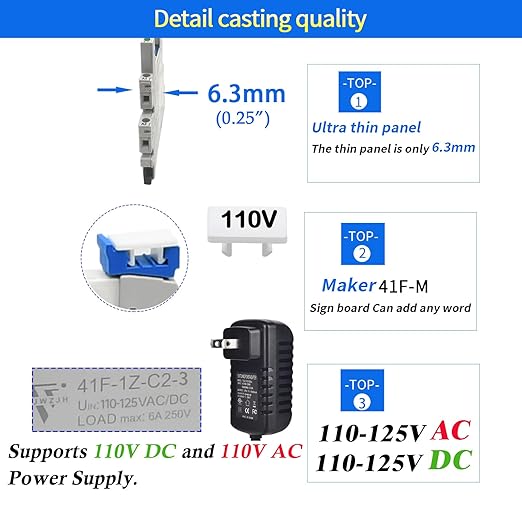

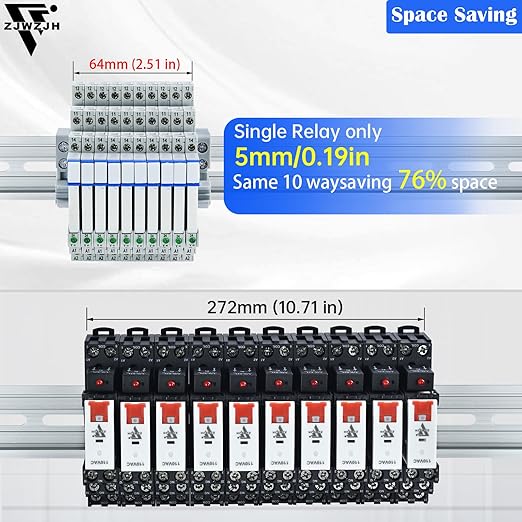

  • 110V Relay Model:HF41F/60-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W)
  • Mount Rail Type : 35mm (1.38") DIN Rail; DIN Rail length :140mm (5.51").

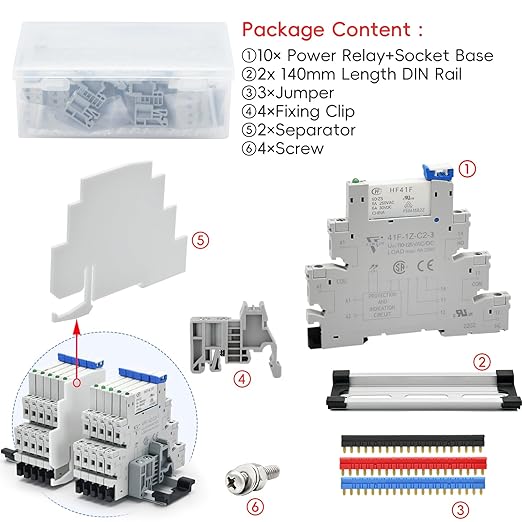

  • 【Package】Package Content : 20× Power Relay; 20× Relay Socket Base; 4x 140mm Length DIN Rail; 6×Jumper;8×Fixing Clip;4×Separator; 8×Screw. Ambient temperature: -40℃ ~ 70℃.

Overview

  • Connector Type : Screw
  • Contact Material : Silver
  • Contact Type : Normally Open
  • Current Rating : 6 Amps
  • Mounting Type : DIN Rail Mount
